Cattle Sweep Tub to Fit Any Cattle Handling Configuration
Arrowquip’s Cattle Crowding Tubs are engineered for efficient, low-stress cattle flow and built to handle the demands of any operation. These high-capacity, high-quality tubs are designed to move your cattle quickly and safely into a cattle chute, alley, or truck. The tubular frame is lightweight yet durable enough to withstand heavy-duty use, while sheeted sides reduce distractions and keep cattle calm.
Each tub includes a standard crowd-gate lock-out and exit gate for better control and safety. Simple assembly makes set-up and tear-down fast and efficient, so you can focus on working cattle—not fighting your equipment.
A reliable solution for moving cattle quickly, safely, and with less effort.
PRODUCT OVERVIEW
*Product appearance and features may differ slightly from what’s shown.
Cattle Crowding Tub Features

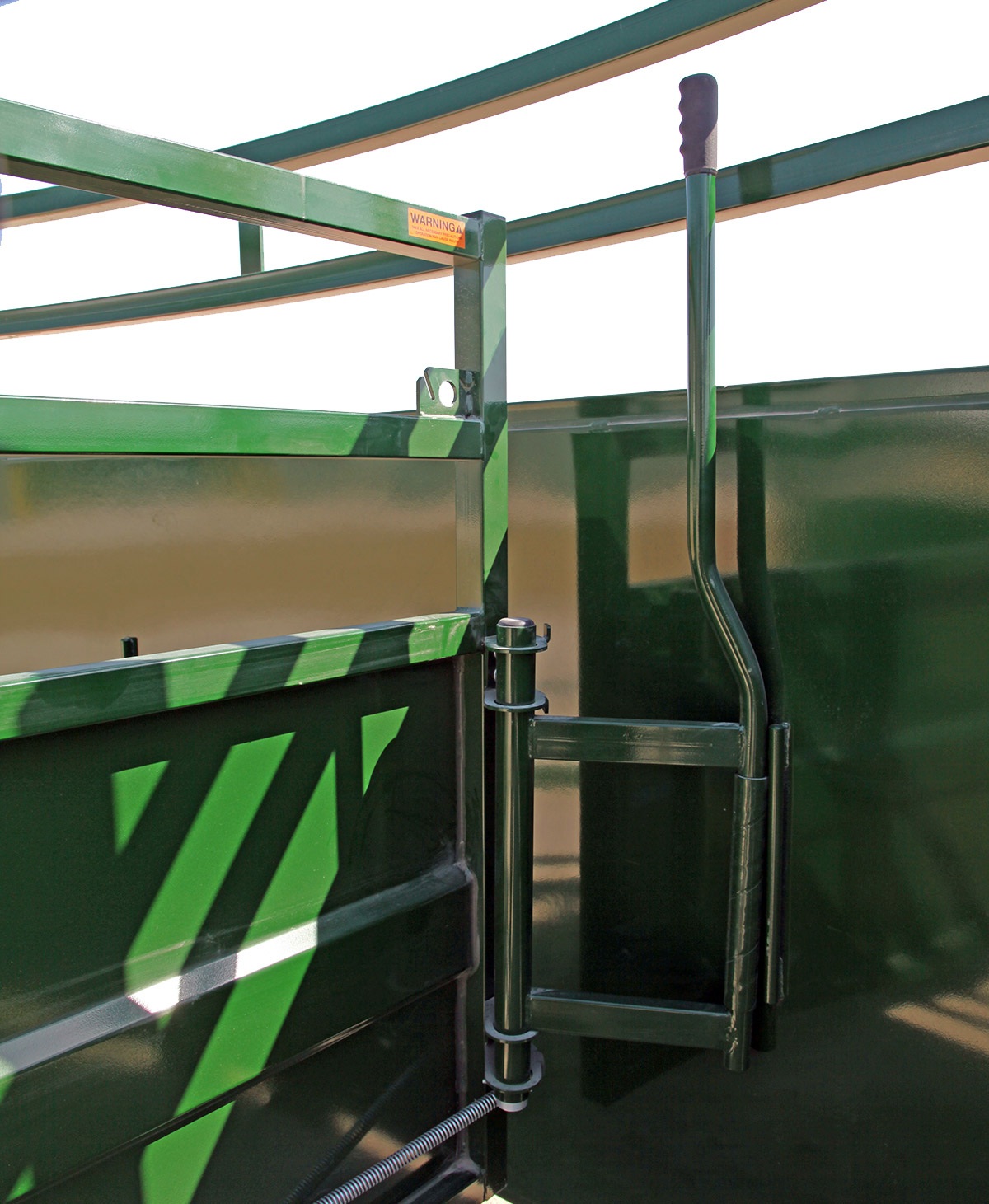

Crowd Gate Lock
The crowd gate automatically locks into position as you move the sweep through the tub, ensuring cattle cannot push back on the gate and cause injury to the handler. For quieter operation, the crowd gate lock features a rubber bushing to cushion the impact on the panels and reduce metal clanging. When not in use, the crowd gate lock can be disengaged to pull the sweep back in a smooth motion.

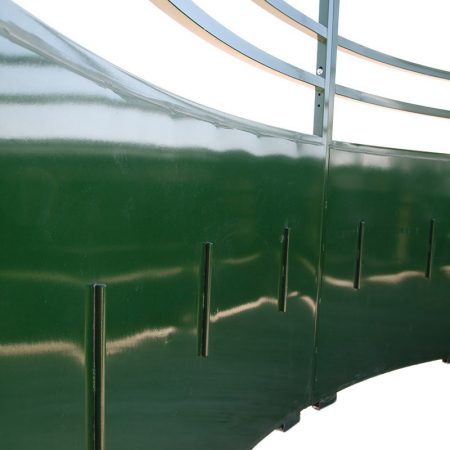

Fully Sheeted Sides
The fully sheeted sides on the Cattle Crowding Tubs safeguard cattle, as there are no foot traps or opportunity for them to injure themselves in the tub. 53" sheeting allows the handler to use point of balance handling techniques to assist with cattle movement.
High-Quality Construction

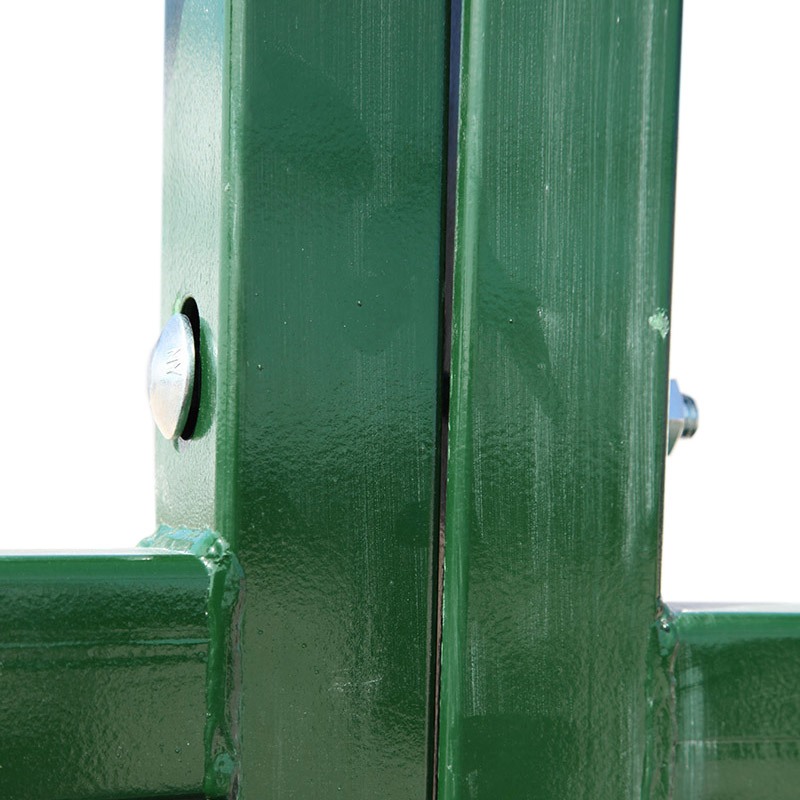

All Crowding Tubs are built for heavy-duty work. Made with powder-coated American steel, the Crowding Tub is designed to withstand extreme weather conditions for long-term use. For added stability, the panels are bolted together and stabilized by joiner bars that connect to the center of the tub.
Connect With Ease
Connecting your crowding tub to your alley or cattle corral panels is quick and easy. With four pin connections, seamlessly connect to any Arrowquip equipment.
Cattle Crowding Tub Specifications
Backed by the Experts
The Cattle Crowding Tub is built to withstand the demands of daily use in real-world ranching conditions. Backed by Arrowquip’s trusted manufacturer warranty, you can operate with confidence season after season.
5-Year Warranty
Cattle Crowding Tub Image Gallery
MODELS AVAILABLE
*Depends on tub option chosen. | 8' Crowding Tub [T8-SA90] comes standard.
| PRODUCT | Product Code | Diameter Radius | Width | Height | Length | Weight | Max # Adult Cattle | Recommended Alley Length |
|---|---|---|---|---|---|---|---|---|

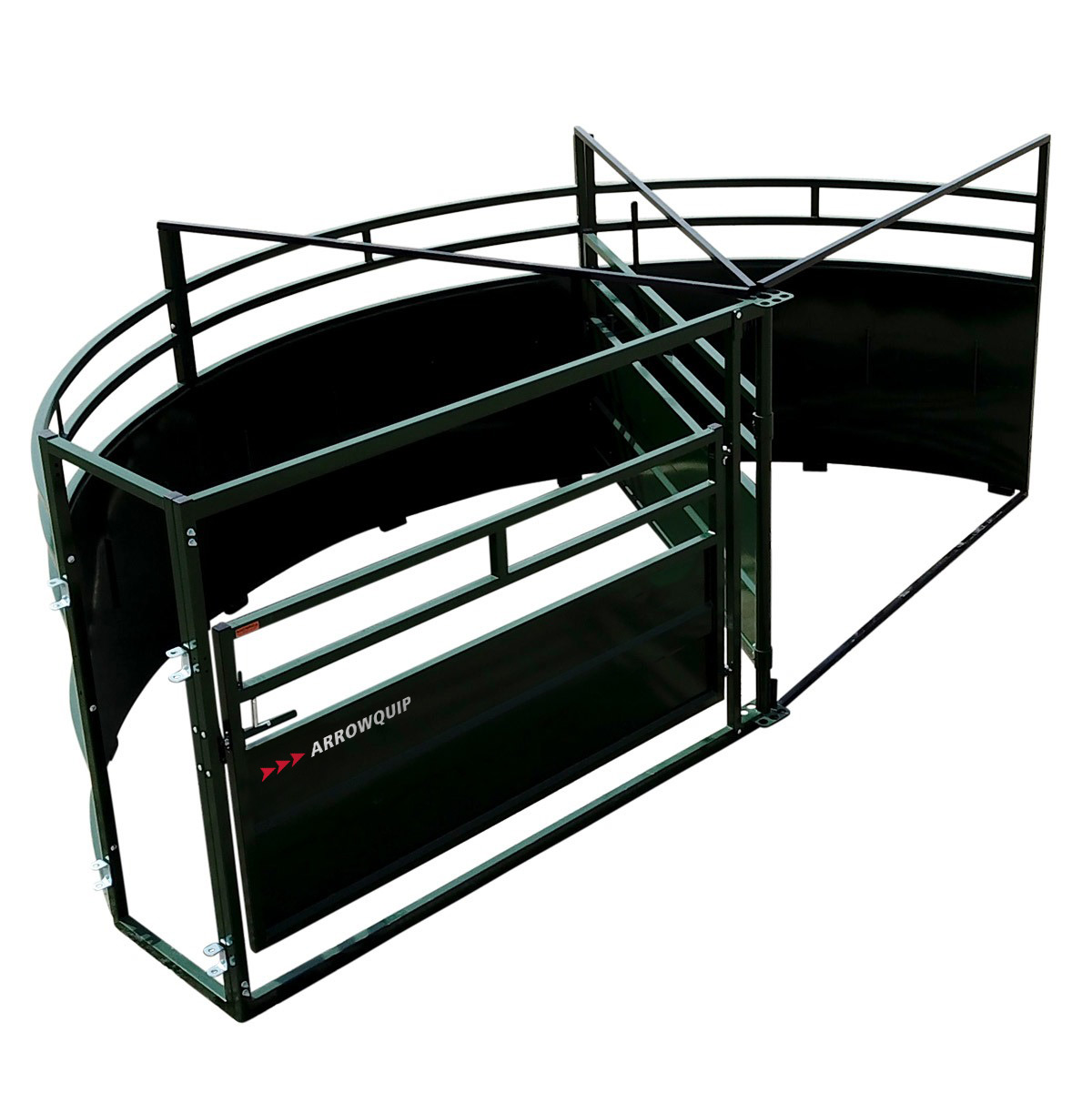

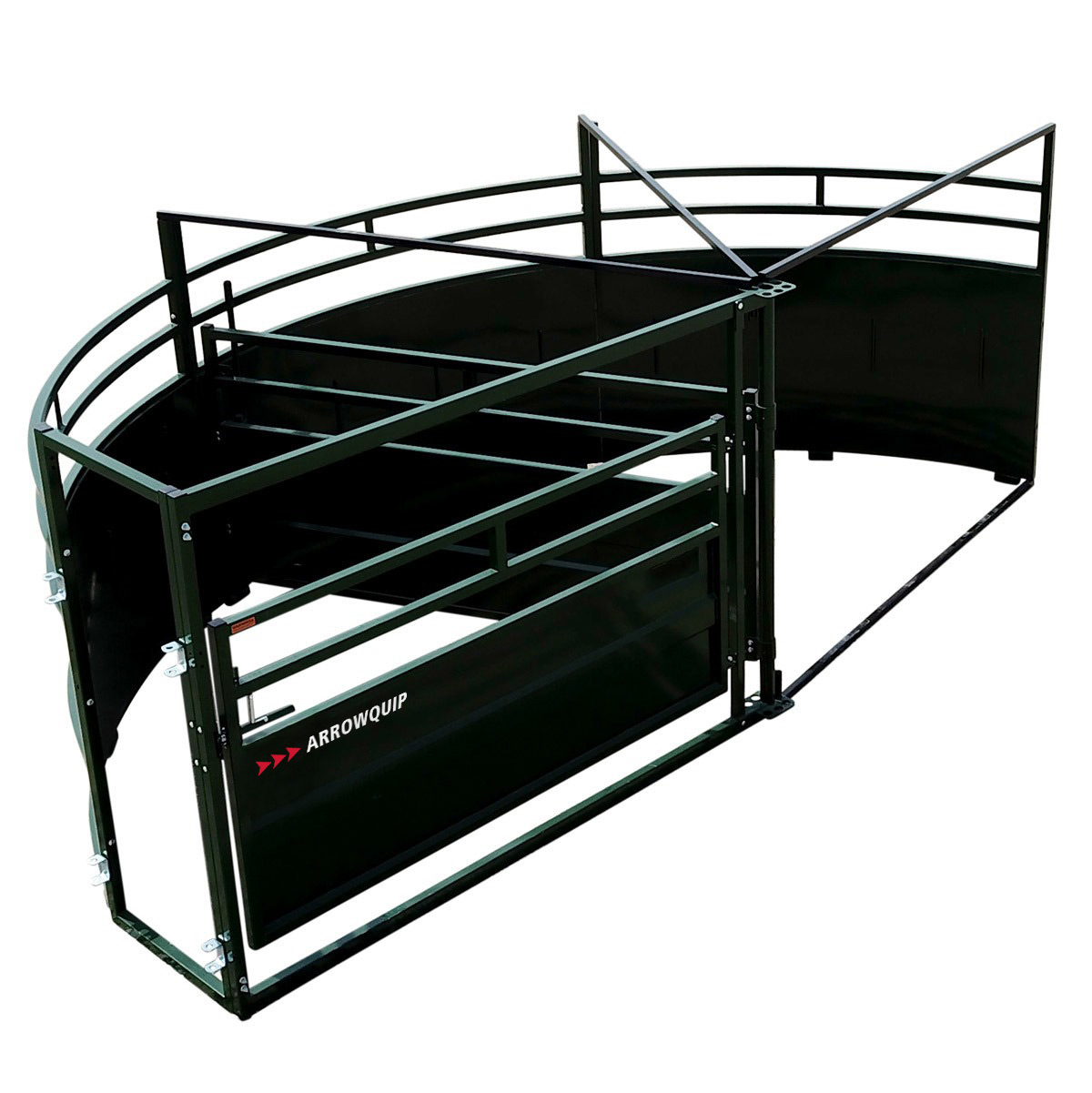

 Single 90 Alley Exit | T8-SA90 | 8' | 101" | 86" | 189" | 1218 lbs | 2-3 | 16' (2 x 8' Alleys) |
| T10-SA90 | 10' | 125" | 86" | 237" | 1487 lbs | 4-5 | 20' (2 x 10' Alleys) | |
| T12-SA90 | 12' | 149" | 86" | 288" | 2554 lbs | 7-8 | 30' (3 x 10' Alleys) | |

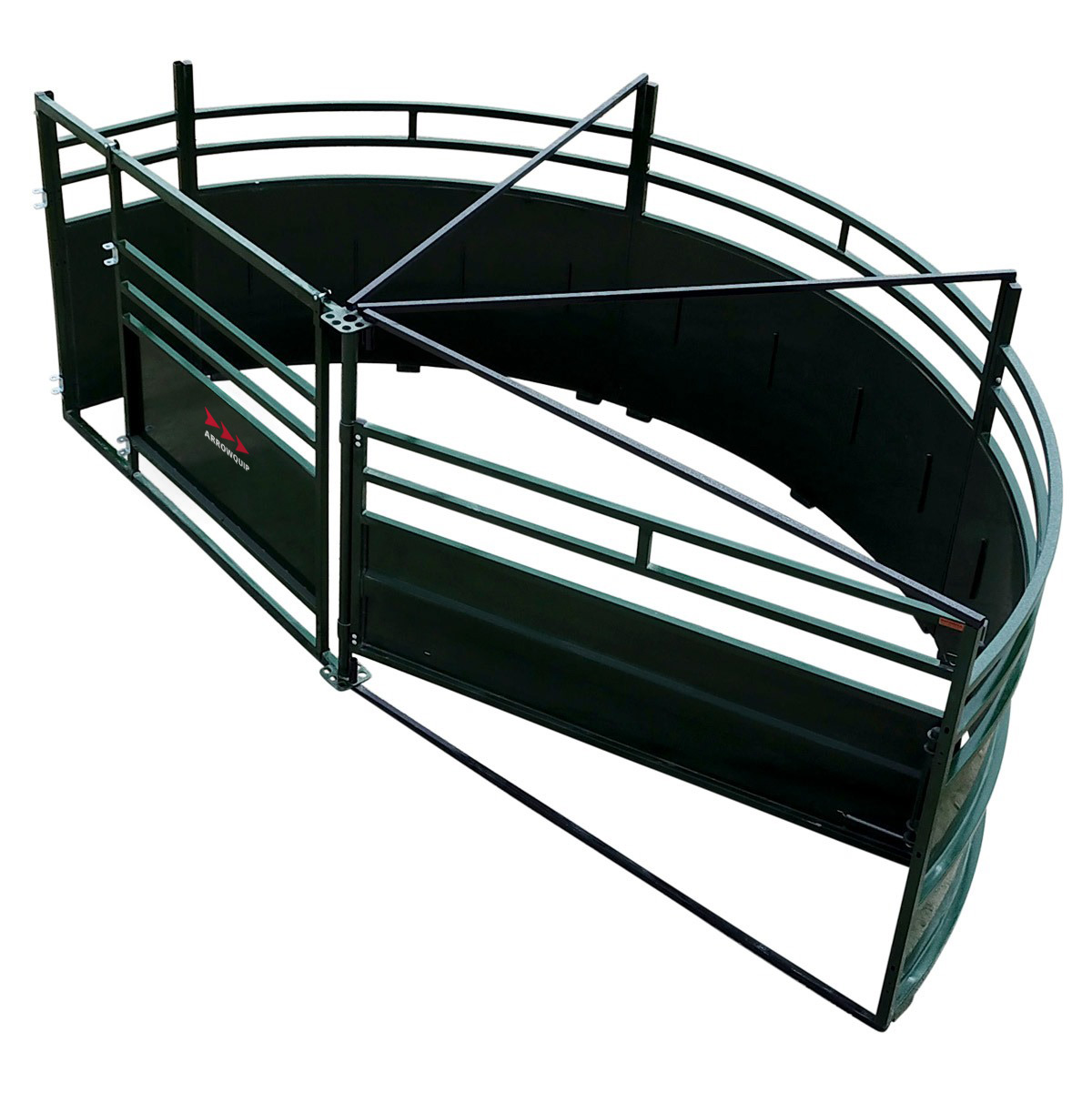

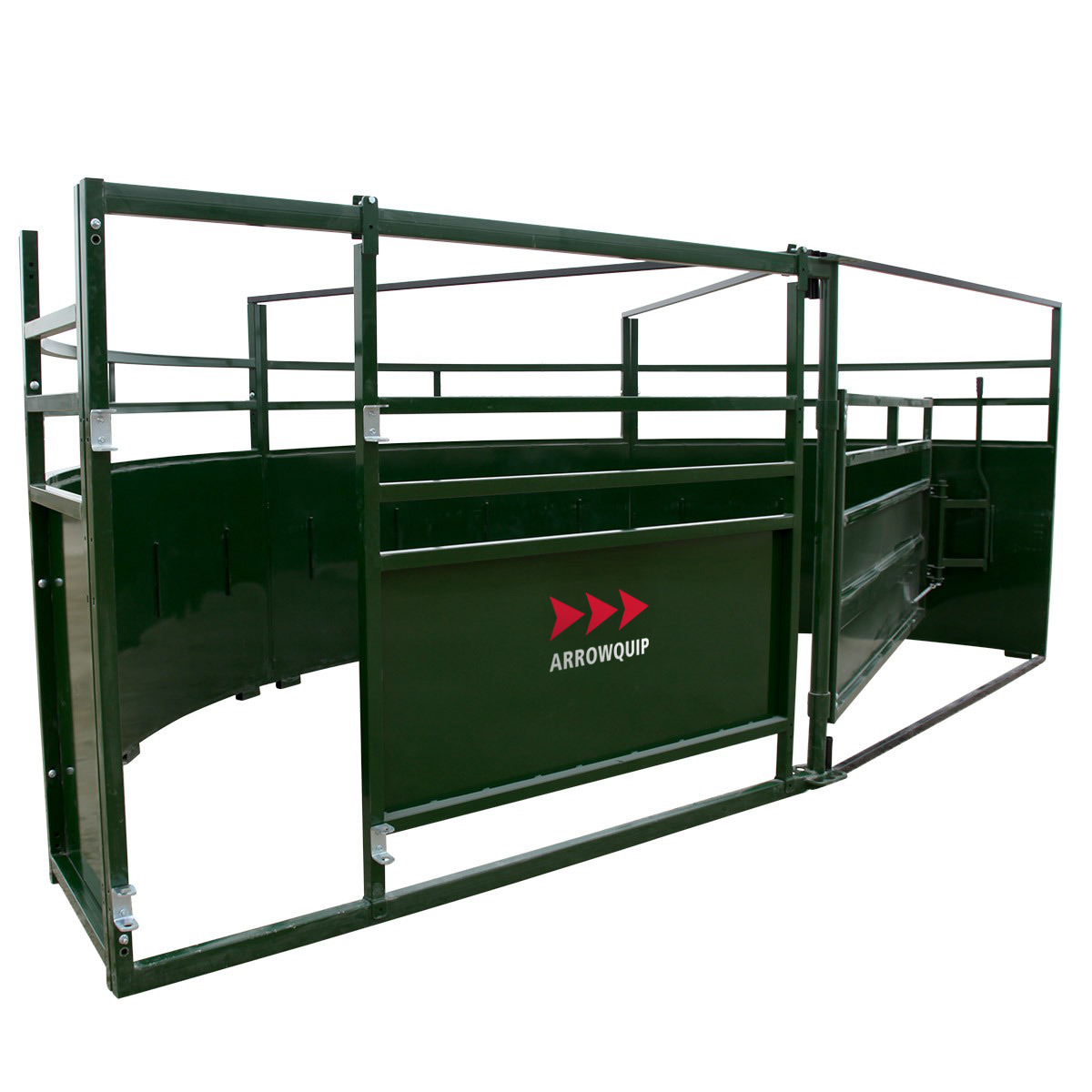

| Single 180 Alley Exit | T8-SA180 | 8' | 101" | 86" | 186" | 1216 lbs | 2-3 | 16' (2 x 8' Alleys) |

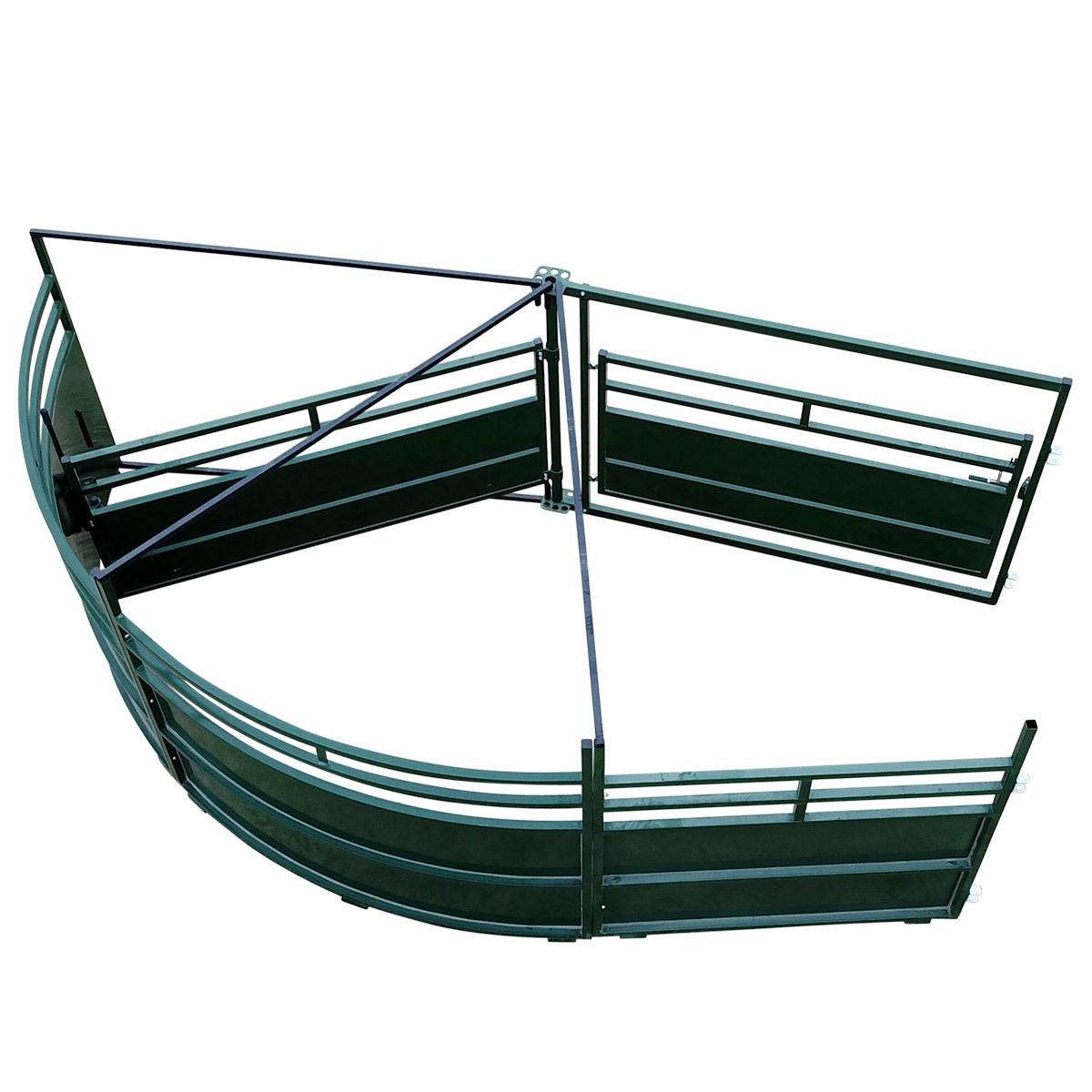

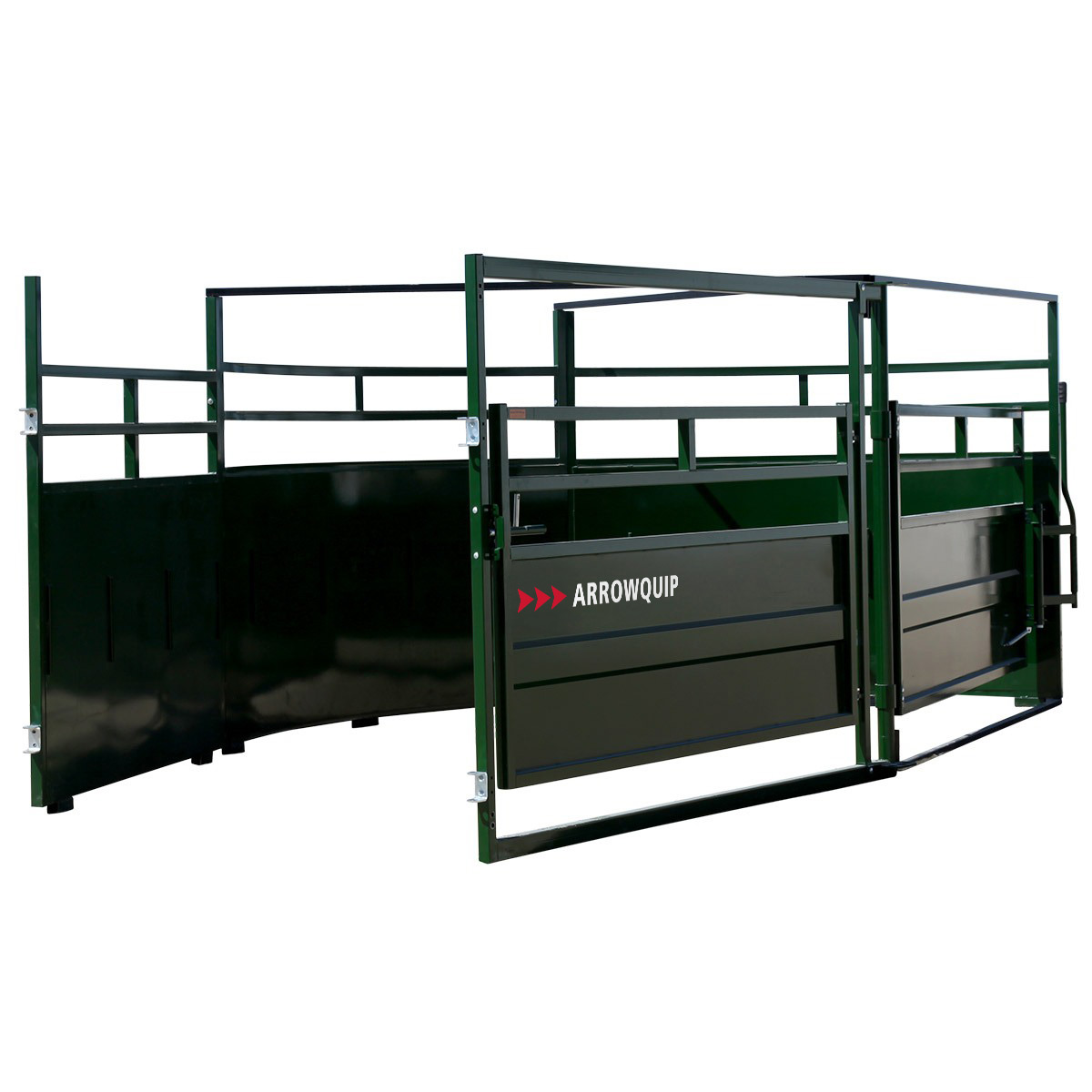

 Double 90 Alley Exit | T10-DA90 | 10' | 127" | 86" | 237" | 1,371 lbs | 4-5 | 20' (2 x 10' Alleys) |

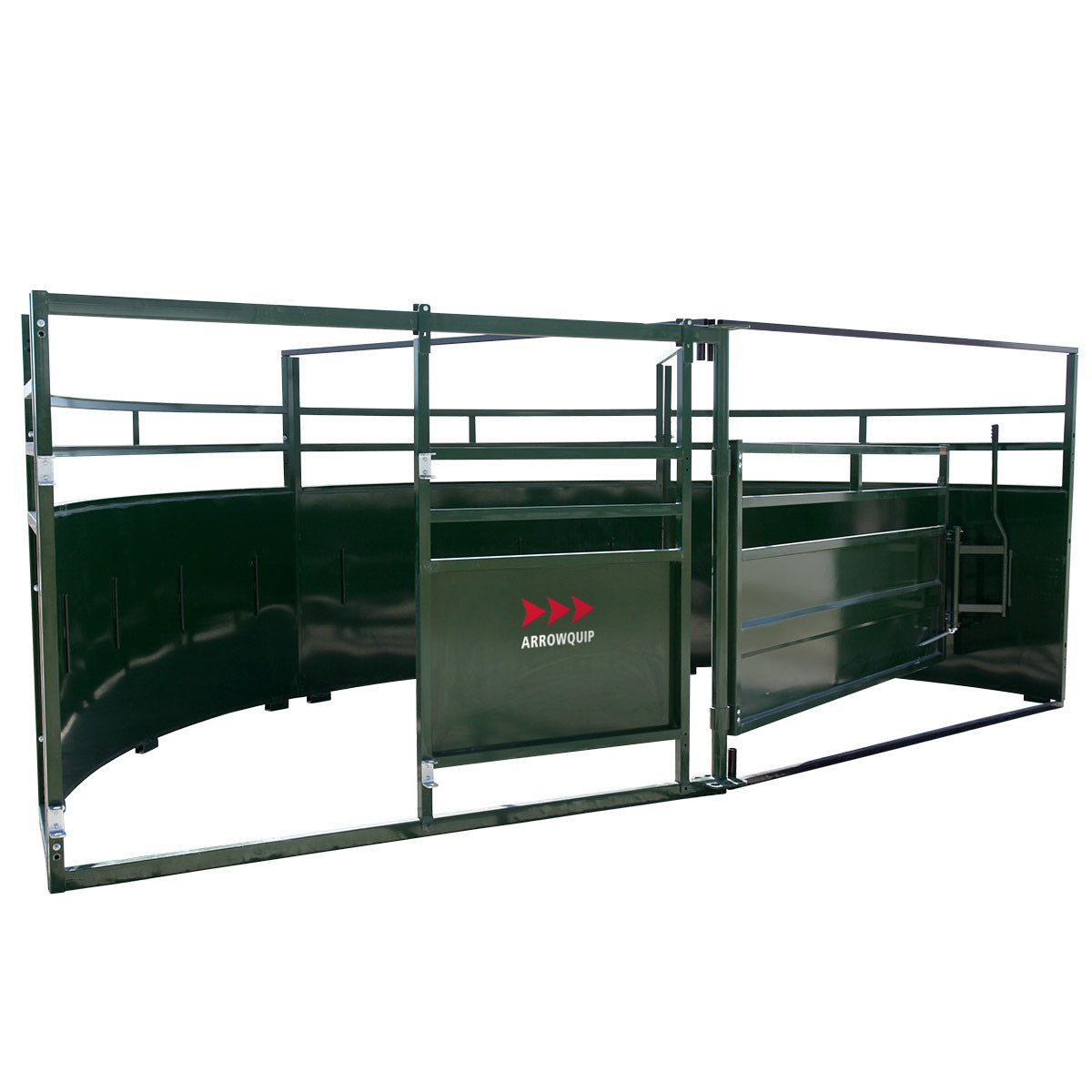

 Double 180 Alley Exit | T10-DA180 | 10' | 125" | 86" | 235" | 1,436 lbs | 4-5 | 20' (2 x 10' Alleys) |

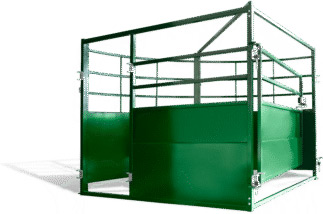

 Pro Series Quarter Tub | PRO-QT8 | 8' | 106" | 80" | 103" | 597 lbs | 2-3 | 16' (2 x 8' Alleys) |
