A Simple Portable Solution for Cattle Handling On-the-Go
The Portable Cattle Tub & Alley is a mobile cattle handling system designed for ranchers who need efficiency, capacity, and safety on the go. Built for flexibility and speed, it combines proven animal science with a transport-ready frame to deliver smooth cattle flow and safer handling anywhere you need it.
Arrowquip’s Portable Cattle Tub and Alley has been upgraded to provide you with more capacity and features to make working cattle simpler, no matter where you are. Featuring an enhanced portable system frame found in all Arrowquip portable models and a collapsible tub that’s easier than ever install.
When you’re done using the unit, the cattle tub folds into itself, giving you a safe and easy towing experience. Featuring an adjustable hitch, thick structural beams, and a single-point jacking system, setting up and taking down this portable unit can be done in under 5 minutes.
The Portable Tub & Alley saves you time and makes cattle handling anywhere easier.
PRODUCT OVERVIEW
*Product appearance and features may differ slightly from what’s shown.
Portable Tub & Alley Features
Most Compact Towing Package Ever
The Portable Tub and Cattle Alley is designed with compact towing in mind, allowing you to transport the unit safely. Measuring just under 28’ long, this system is easier than ever to tow.
3E System
The 3E System drastically improves cattle entry into the tub and prevents hold-ups as they enter the alley. With the BudFlow Tub upgrade, you also add functionality to your system by allowing cattle to work with their natural instincts and increase tub capacity.
Easy Flow Cattle Alleys
The Easy Flow Adjustable Cattle Alley is designed for safe, efficient handling in portable systems. With an adjustable width from 31.5” down to 21.3”, animals can’t turn around, while spring latches and ropes let you adjust both sides without walking around the unit. Built-in blinder panels control what cattle see, and an emergency exit provides peace of mind if an animal goes down. For added efficiency, the alley can also be used for weighing with a platform.
Designed to Move

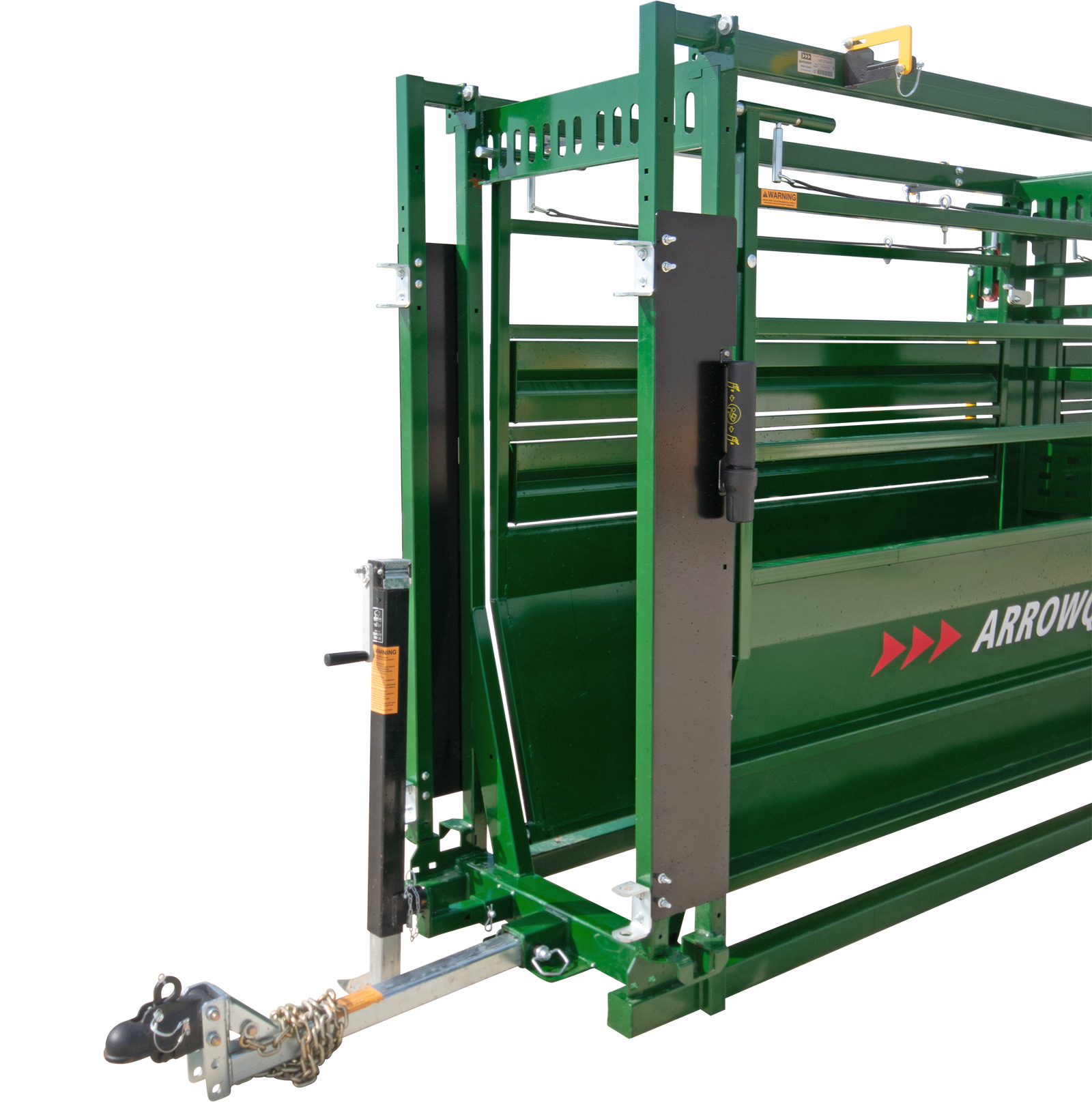

The Portable Cattle Tub and Alley comes with a durable hitch that features an added gusset for support and a bracket that can be adjusted into three different positions to work with different vehicles. The wheels are easily installed with two pins, and the unit comes with a 2-5/16” ball hitch or pin hitch so you can choose the right option for your towing setup.
Portable Tub & Alley Specifications
Ready for the Long Haul
Arrowquip’s Portable Tub and Alley is built for dependable performance on the move. Backed by the best warranty in the industry, you can feel confident with the equipment, no matter where you need it.
5-Year Warranty
Portable Tub & Alley Images
MODELS AVAILABLE
Portable Chute, Alley & Tub Models
| PRODUCT | Product Code | Working Width | Working Height | Working Length | Towing Width | Towing Height | Towing Length | Weight |
|---|---|---|---|---|---|---|---|---|
| Portable Tub & Alley | PTA-BF | 180” | 84” | 416” | 80” | 98” | 352” | 3483 lbs. |
| PTA-CROWDING | 180” | 99” | 415” | 80” | 106” | 352” | 3730 lbs | |
| Portable Tub & Alley with Head Gate | PTA-HG-BF | 180” | 99” | 415” | 80” | 106” | 352” | 3730 lbs |
| PTA-HG-CROWDING | 103” | 99” | 415” | 80” | 106” | 352” | 3364 lbs | |
| Portable Tub & Alley with Rolling Door | PTA-RLDR-BF | 180” | 84” | 416” | 80” | 98” | 352” | 3571 lbs |
| PTA-RLDR-CROWDING | 103” | 84” | 416” | 80” | 98” | 352” | 3212 lbs |
Portable Cattle Alley & Tub Add-Ons
Customize your portable system with add-ons designed to enhance functionality, improve safety, and better suit the needs of your operation.
Fourth-Generation Cattle Head Holder
This cattle head holder easily attaches to your head gate and clamps around cattle’s neck so you can safely treat your cattle up-close, simplifying any necessary procedures.
Cattle Balk Gate
Even if you miss catching your livestock in the head gate, you can still be sure they won’t escape with the Arrowquip Balk Gate. This will help create a controlled environment so you can treat your cattle with ease. Lug posts included to mount to chute. [only available with PTA-HG]
Weigh Platform Kit
The Easy Flow Alley Weigh Platform Kit can be added to an 8' Easy Flow Alley section to provide fast, accurate weigh-ins with the addition of load bars. Features heavy-duty, 1/4" aluminum plate that provides excellent traction for hooves.
Scale Mount Plates
Scale Mount Plates can pair with the Easy Flow Alley Weigh Platform Kit. Designed to support 23" alleyway load bars. Options for Gallagher or Tru-Test load bars are available.
